Ürün ayrıntıları

Evde Ürünler

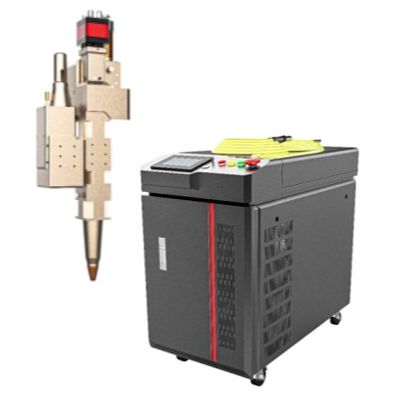

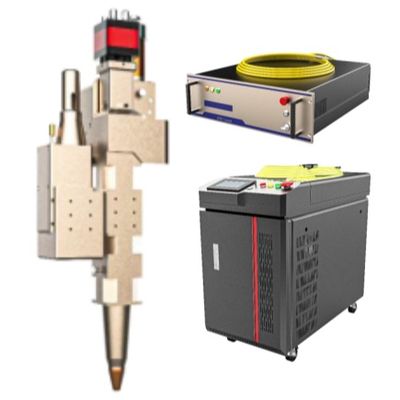

HW Blue Light Hybrid Welding Head with Double Motor for Highly-Reflective Material Welding

HW Blue Light Hybrid Welding Head with Double Motor for Highly-Reflective Material Welding

Marka Adı:	HanWei
Model Numarası:	HW-36-70-100200-Y-QBH
Moq:	1 set
fiyat:	USD / Set
Ödeme Şartları:	T/T
Tedarik Yeteneği:	2000 set / yıl

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Shenzhen, Çin

Sertifika:

Model:

HW-36-70-100200-Y-QBH

Kafa tipi:

Lazer ışını tipi:

―、○、◎、⊙、△、8

Lazer gücü:

Mavi Lazer 1000 W & Fiber Lazer 3000 W

Odaklama Odak Uzunluğu:

150 / 200mm

Kolimasyon Odak Uzunluğu:

Mavi 70mm - Fiber 100mm

Arayüz türü:

QBH - QBH

Erişilebilir dalga aralığı:

450nm + 1064nm

Net ağırlığı:

2,5 kg

Lazer ışını boyutu ayarlanabilir:

0.5 - 5mm

Kullanılabilir lazer kaynağı:

Mavi ve fiber lazer kaynağı

Ambalaj bilgileri:

Dışa Aktarma kontrplak paketleme

Yetenek temini:

2000 set / yıl

Vurgulamak:

blue light hybrid welding head

welding head for reflective materials

double motor laser welding head

Ürün Tanımı

HW Blue Light Hybrid Welding Head with Double Motor for Highly-Reflective Material Welding

Hanwei blue laser (450nm) and fiber laser (1064nm) Hybrid-laser wobble welding can achieve blue laser source and fiber laser source coaxial recombination. It is used in thick and highly reflective metal welding (gold, silver, copper, aluminum). By wobble method make itself used more widely and technical parameter. The reflective materials have more highly absorptivity for blue-fiber hybrid laser make less spark in welding process and achieve quality welding and nice welding surface.

Applications

Widely used in welding high-reflectivity materials.

Key Features

Used for processing thicker materials
The adjustable spot oscillation design significantly broadens the welding process window and application range
Welding with no spatter
Single-side welding with double-side formation

Technical Parameters

Model	HW-36-70-100200-Y-QBH
Laser Power	Blue laser 1000 W & Fiber laser 3000 W
Focusing Focal Length	150 / 200mm
Collimation Focal Length	Blue 70mm – Fiber 100mm
Head Type	Y
Net Weight	2.5 Kg
Interface Type	QBH - QBH
Accessible Wave Range	450nm + 1064nm
Laser Beam Size Adjustable	0.5 – 5mm
Laser Beam Type	―,○,◎,⊙,△,8
Usable Laser Source	Blue and Fiber Laser Source

Performance Advantages

More than 70% high absorptivity
Reduces equipment power requirements compared to red guide beam laser
Suitable for thick and highly reflective material welding
Low spark production during welding
High and stable welding quality with deep penetration
Smooth welding surface finish

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser aspires to democratize the adoption of world-leading laser welding technology for all system integrators. As one of the global elite enterprises certified as both a national high-tech entity and a "specialized, sophisticated, distinctive, and novel" firm, it concentrates exclusively on the full-industry-chain R &D, production, and sales of specialized laser welding equipment—encompassing welding-specific lasers, laser control systems, laser optical systems, and core laser welding technologies.

Product Portfolio

Ring-Spot laser welding systems, blue laser welding units, blue laser + fiber hybrid welding setups, Diode + fiber hybrid welding equipment, YAG + Diode hybrid welding systems, YAG laser welding units, Diode laser welding devices, mold repair laser welding systems, QCW laser welding equipment. Complementary to these are compatible laser welding control systems, laser welding optical systems, and supporting products for laser welding peripheral machinery.

Core Principles

Adhering to the principle of "taking R &D as the core, technology as the cornerstone, and service as the support," Hanwei Laser has consistently served B-end clients (including laser equipment manufacturers and automation firms). It takes "reliable quality, continuous progress, persistent innovation, and thoughtful service" as its service objectives.

Applications

New energy batteries, automotive manufacturing, auto parts production, electronic circuits, optical fiber communication devices, mobile electronics, home appliances, kitchen and bathroom hardware, precision instruments, measuring tools, gold and silver jewelry, medical devices, solar energy equipment, eyewear manufacturing, and motor production.
