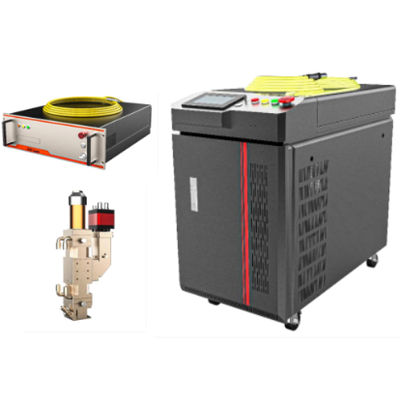

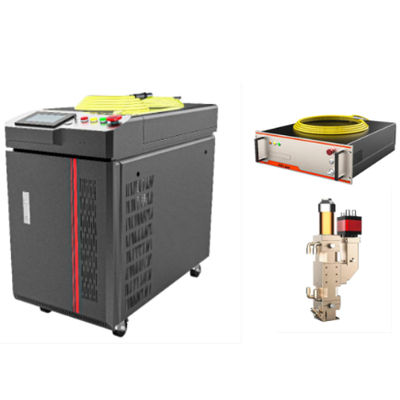

Major Invention Patent RS Series - Ring & Spot Laser Welding Machine for Battery

Major Invention Patent RS Series - Ring & Spot Laser Welding Machine for Battery

Marka Adı:	HanWei
Model Numarası:	HW-DH-2KW+2KW
Moq:	1 Takım
fiyat:	USD / Set
Ödeme Şartları:	T/T
Tedarik Yeteneği:	2000 set / yıl

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Shenzhen, Çin

Sertifika:

Lazer gücü:

6000w'a kadar

Lazer güç dengesi:

≤% 3

Fiber kablo uzunluğu:

10m (özelleştirilmiş)

Çalışma voltajı:

380V±10% 50/60Hz

Kılavuz ışın (MW):

≥0,5

Bağlantı:

Qbh

Fiber Çekirdek (UM):

50/100

Frekans(KHZ):

1 ~ 100

Soğutma yöntemi:

Su soğutma

Dalgaboyu:

1080 nm ± 3

Çalışma Modu:

CW/QCW/PWM

Ambalaj bilgileri:

Dışa Aktarma kontrplak paketleme

Yetenek temini:

2000 set / yıl

Vurgulamak:

RS series laser welding machine

battery ring spot welder

industrial laser welder with patent

Ürün Tanımı

Major Invention Patent RS Series - Ring & Spot Laser Welding Machine for Battery

The full-featured Ring & Spot Laser Welding Machine is a major patented invention product launched by our company in 2020. Its technical approach is completely different from other ring-shaped spot lasers worldwide, breaking through traditional beam shaping solutions and achieving innovation in laser output forms from the source.

Compared with similar equipment, this product not only has stable performance but also offers an extremely high cost-performance ratio, providing a more competitive option for mid-to-high-end industrial welding. Whether in terms of equipment investment costs or subsequent maintenance expenses, the Starship Fiber Laser Welding Machine demonstrates significant overall economic advantages.

Key Features

Patent product with unique technical approach offering extremely high cost-performance
Unique ring-shaped laser structure enables spatter-free high-speed welding
Intelligent control system compatible with welding any thickness of any metal
Stable, spatter-free welding of aluminum, copper, and stainless steel

Technical Specifications

Model	HW-DH-2Kw+2Kw	HW-DH-3Kw+3Kw	HW-DH-2Kw+4Kw
Laser Power	4000 W	6000 W	6000 W
Working mode	CW/QCW/PWM	CW/QCW/PWM	CW/QCW/PWM
Wavelength	1080 nm ±3	1080 nm ±3	1080 nm ±3
Frequency(Khz)	1-100	1-100	1-100
Guide Beam(mW)	≥0.5	≥0.5	≥0.5
Connection	QBH	QBH	QBH
Fiber Core(um)	50/100	50/100	50/100
Fiber Cable Length	10m (Customized)	10m (Customized)	10m (Customized)
Operating Voltage	380v±10% 50/60Hz	380v±10% 50/60Hz	380v±10% 50/60Hz

Applications

The Starship fiber laser welding machine can still ensure a spatter-free effect when welding high-reflectivity metals such as aluminum and copper, effectively avoiding issues common in traditional welding, such as rough weld seams, uneven weld spots, and excessively large heat-affected zones. Stainless steel welding also maintains smooth weld seams and full shaping, meeting the strict requirements for appearance and structural strength in mid-to-high-end manufacturing industries, making it suitable for high-standard fields such as new energy, 3C, and metal processing.

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser is a national high-tech enterprise specialized in laser welding technologies. The company concentrates on the full-industry-chain research, development, and production of welding-specific lasers, control systems, optical systems, and welding processes.

Product Range

Ring-Spot laser welding machines
Blue laser welding machines
Diode + fiber composite welding machines
Mold repair laser welding machines
QCW laser welding machines
YAG + Diode composite welding machines
YAG laser welding machines
Diode laser welding machines
Blue laser + fiber composite welding machines

The company also provides supporting equipment including laser welding control systems, optical systems, and relevant peripheral accessories.
