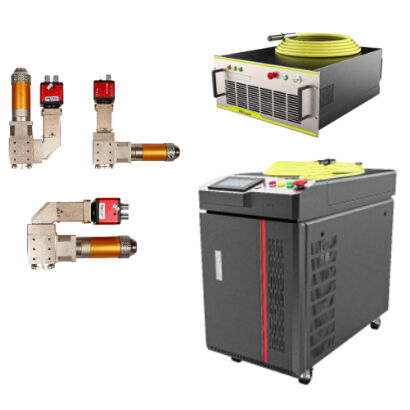

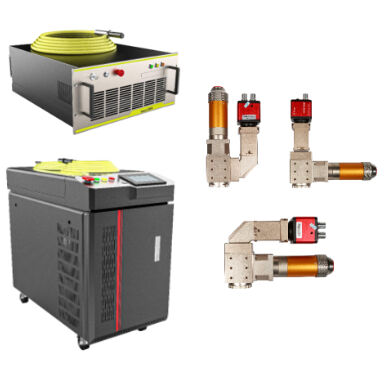

QCW Laser Welder with Independently Developed Optical Distribution & Timing Control System

QCW Laser Welder with Independently Developed Optical Distribution & Timing Control System

Marka Adı:	HanWei
Model Numarası:	HW-QCW
Moq:	1 takım
fiyat:	USD / Set
Ödeme Şartları:	T/T
Tedarik Yeteneği:	2000 set / yıl

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Shenzhen, Çin

Sertifika:

Lazer Gücü:

150W/300W

Güç Tüketimi:

2 kW/2,5 kW

Makine Boyutu:

665*450*300 mm

Soğutma Yöntemi:

Hava Soğutma

En yüksek güç:

1500W/3000W

Makine ağırlığı:

22kg/28kg

Nabız Enerjisi:

15J/30J

Sıklık:

100 Hz/2 kHz

Dalgaboyu:

1070nm ±% 10

Güç Kararlılığı:

≤ ± %1

Darbe genişliği:

0,5-50

Giriş Gerilimi:

AC220V 50/60Hz

Ambalaj bilgileri:

Dışa Aktarma kontrplak paketleme

Yetenek temini:

2000 set / yıl

Vurgulamak:

QCW laser welder with optical distribution

industrial laser welding machine with timing control

QCW laser welder with independent system

Ürün Tanımı

QCW Laser Welder with Independently Developed Optical Distribution & Timing Control System

Quasi-Continuous Wave (QCW) fiber lasers are widely used in metal manufacturing fields requiring strict thermal input control, thanks to their ability to deliver high peak energy over extended pulse durations. Whether for spot welding on metal surfaces, regular weld seam joining, or welding of small-to-medium-sized structures demanding stable energy density, this type of laser source maintains reliable beam performance.

Key Features

Key Features of QCW Fiber Laser Sources with Long Pulse Duration and High Energy Output
Specialized Design Solution for YAG Process Replacement Requirements
Structural Advantages in Reducing Daily Operation Burden and Maintenance Costs
Independently Developed Optical Distribution and Timing Control System

Technical Specifications

Model	HW-Q-150	HW-Q-300
Input Voltage	AC220V 50/60Hz	AC220V 50/60Hz
Machine Size	665450300 mm	665450300 mm
Wavelength	1070nm ± 10%	1070nm ± 10%
Frequency	100 Hz	2 KHz
Machine Weight	22 Kg	28 Kg
Laser Power	150 W	300 W
Peak Power	1500 W	3000 W
Pulse Width	0.5-50	0.5-50
Pulse Energy	15 J	30 J
Power Stability	≤ ± 1%	≤ ± 1%
Power Consumption	2 Kw	2.5 Kw
Cooling Method	Air Cooling	Air Cooling

Applications

To address the shortcomings of traditional YAG lasers in energy consumption, beam quality, and long-term stability, this QCW laser welding machine has been specifically designed with process reengineering for common YAG welding scenarios. Featuring more uniform energy output and adjustable modes, the equipment is capable of handling typical YAG applications such as metal assembly welding, component joining, and precision structure welding.

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser stands as one of the world's rare enterprises boasting independent R&D capabilities for the complete hardware and software suite of high-speed laser beam splitting systems, energy splitting systems, and time splitting systems. Its product range primarily covers various laser welding solutions and complementary laser welding control systems.
